Authentication Server Appliance Datasheet

A dedicated and easy to maintain authentication solution

HIGHLIGHTS

  • OneSpan Authentication Server Appliance is a comprehensive, centralized and flexible authentication appliance designed to deliver complete authentication lifecycle management via a single, integrated system.
  • It offers secure and seamless access to a variety of corporate resources and web-based business applications, from SSL VPNs to cloud-based apps. It supports OneSpan’s entire range of authentication solutions, and simplifies authentication management for both administrators and end users.

Strong, two factor authentication

OneSpan Authentication Server Appliance is a comprehensive, centralized and flexible authentication platform offering strong user authentication for local and remote access to the corporate network and to web-based business applications. The solution is highly suited for enterprises looking to acquire a dedicated appliance for their authentication needs, avoiding the hassles and cost of installing and maintaining a software-based solution.

The combination of OneSpan Authentication Server Appliance and Digipass provides strong user authentication that offers a higher security compared to reusable static passwords.

User convenience first

OneSpan Authentication Server Appliance streamlines the costliest and most time-consuming tasks associated with managing an authentication solution through a web-based user interface. Complex configuration tasks such as repliaction between multiple appliances can be completed within a few clicks. Software pdates are automatically implemented with a complete fail safe mechanism. Optional remote support can be offered as part of the maintenance agreement.

Easy to deploy

OneSpan Authentication Server Appliance comes as a standard appliance with preloaded OneSpan Authentication Server software and a seperate administration interface including automatic upgrade and backup features. It can be easily implemented in any IT environment and provides a turnkey solution that can be operational in a very short time. Deployment is as simple as installing the appliance in your infrastructure, configuring the front-end and back-end interfaces and importing the user data and authenticators.

Scalable solution

OneSpan Authentication Server Appliance comes in multiple hardware versions, addressing the needs and required performance levels from the smallest SME to the largest multinational depending on the number of users needed.

  • The 3000 Series targets smaller businesses or small remote sites.
  • The 5000 Series is a standard 1U 19” rack server, suited as main appliance for all business environments.
  • The 9000 Series is a complete redundant 1U, 19” rack server for large enterprises or business critical applications

Ensure business continuity

Every model allows server failover and database replication towards any other OneSpan Authentication Server Appliance, ensuring the highest availability and adjusted performance at remote sites, resulting in zero downtime and permitting the setup of a back-up site and global deployment of the authentication system.

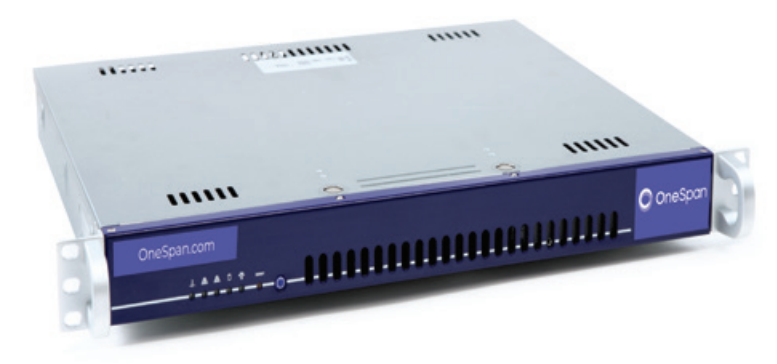

SPECIFICATIONS 3000 Series

OneSpan Authentication Server Appliance 3000 series



Recommended users

500/250

Software

OneSpan Authentication Server 3.x

Operating System

AXS GUARD Core OS 10.0

Chassis Form Factor

1U Rack Mount

Processor Type

Intel® Atom™ Processor D510 (1M Cache, 1.66 GHz)

Memory

2GB 667MHz DDR2 ECC CL5 DIMM

Hard Disk Drive

1 x HDD 500GB SATA

Power Supply

  • AC 100~240V, 50/60 Hz
  • 4-2 Amp Max, 200W max

Power Redundancy

No

Network Ports

2 GbE NIC Bridged ports

Management

  • Web GUI
  • SSH
  • consoleport

Dimensions (W/H/D)

437mm x 43mm x 249mm

17.2” x 1.7” x 9.8”

Weight

6,7 kg (<15lbs)

Compliance to standards

Safety UL, C-UL, CE

EMC FCC, CE

Environment RoHS

Mounting position

Horizontal orientation, 19” Rack, 1 U

Operating temperature

0 to 35 °C, 50 to 90 °F

Operating humidity

8% to 90% (non-condensing)

Storage Temperature

-40 to +70 °C, -40 to 158 °F

Storage Humidity

5% to 95% (non-condensing)

Reliability MTBF

45,000 hours (5 yrs)

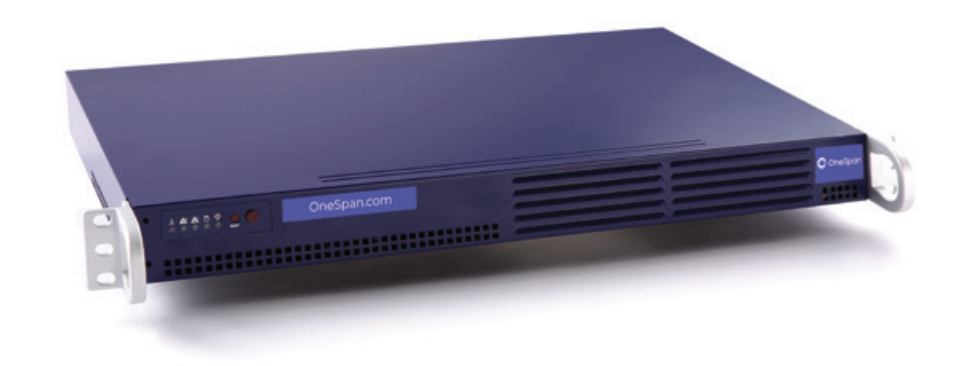

SPECIFICATIONS 5000 Series

OneSpan Authentication Server Appliance 5000 series



Recommended users

10.000/1.000

Software

OneSpan Authentication Server 3.x

Operating System

AXS GUARD Core OS 10.0

Chassis Form Factor

1U Rack Mount

Processor Type

Intel® Core™2 Duo E8400 3GHz 1333MHz 6MB LGA775

Memory

4GB 800MHz DDR2 ECC CL5 DIMM 1

Hard Disk Drive

1 x HDD 500GB SATA

Power Supply

  • AC 100~240V, 50/60 Hz
  • 4-2 Amp Max, 200W max

Power Redundancy

No

Network Ports

2 GbE NIC Bridged ports

Management

  • Web GUI
  • SSH
  • consoleport

Dimensions (W/H/D)

426mm x 43mm x 365mm

16.8” x 1.7” x 14”

Weight

7.7 kg (<17 lbs)

Compliance to standards

Safety UL, C-UL, CE

EMC FCC, CE

Environment RoHS

Mounting position

Horizontal orientation, 19” Rack, 1 U

Operating temperature

0 to 35 °C, 50 to 90 °F

Operating humidity

8% to 90% (non-condensing)

Storage Temperature

-40 to +70 °C, -40 to 158 °F

Storage Humidity

5% to 95% (non-condensing)

Reliability MTBF

45,000 hours (5 yrs)

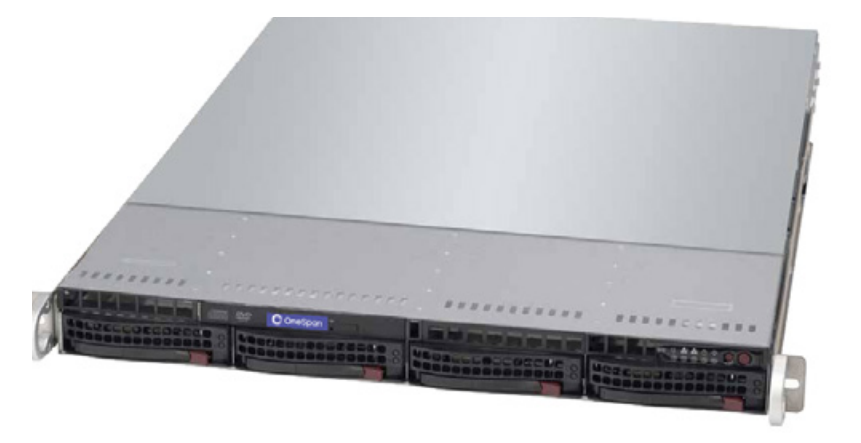

SPECIFICATIONS 9000 Series

OneSpan Authentication Server Appliance 9000 series

Recommended users

100.000/10.000

Software

OneSpan Authentication Server 3.x

Operating System

AXS GUARD Core OS 10.0

Chassis Form Factor

1U Rack Mount

Processor Type

Intel® Xeon® Processor E3-1275 v6 (8M Cache, 3.80 GHz) FC-LGA14C

Memory

16 GB DDR4-2133 ECC UDIMM

Hard Disk Drive

2 x 1TB Sata 3, RAID 1

Power Supply

  • 2 x 500W high-efficiency (94+%) power supply w/ PMBus

Power Redundancy

Hot swappable

Network Ports

2 GbE NIC Bridged ports

Management

  • Web GUI
  • SSH
  • consoleport

Dimensions (W/H/D)

437mm x 43mm x 650mm

17.2” x 1.7” x 25.6”

Weight

13.9 kg

Compliance to standards

Safety UL, C-UL, CE

EMC FCC, CE

Environment RoHS

Mounting position

Horizontal orientation, 19” Rack, 1 U

Operating temperature

0 to 35 °C, 50 to 90 °F

Operating humidity

8% to 90% (non-condensing)

Storage Temperature

-40 to +70 °C, -40 to 158 °F

Storage Humidity

5% to 95% (non-condensing)

Reliability MTBF

45,000 hours (5 yrs)
