Digipass 905 Datasheet

Digipass 905 is an USB desktop smart card reader/ writer. The device has a modern and ergonomic design, targeted to be used in an office or home environment.

Digipass 905 is suitable for a wide range of applications, such as electronic banking, Internet security, network security, loyalty and PKI applications. In normal PC environments driver installation is not needed. Digipass 905 meets all today’s (de-facto) market standards and requirements.

The product

Digipass 905 can be used as desk-top device or as ‘add-on’ device, attached to a note-book or a monitor/display.

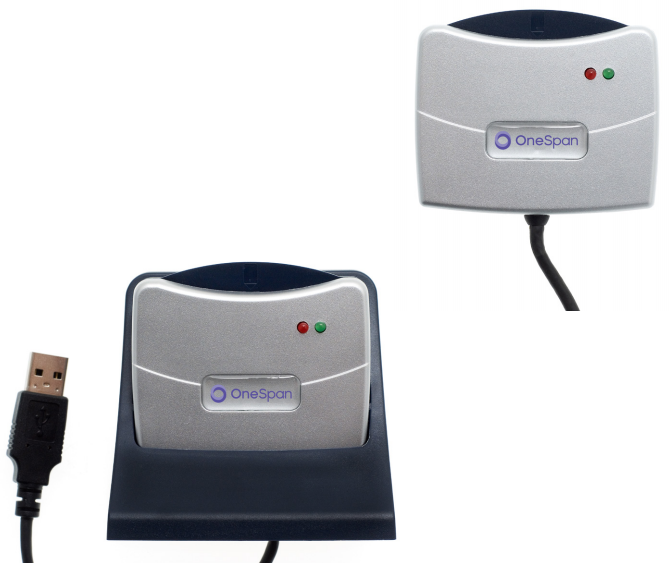

Digipass 905 is delivered with a separate support (see pictures). When used in combination with the support, the reader is extremely stable and card insertion/retraction can be done through a one-hand operation. The device can be customized through a customer specific color scheme and company logos can be added.

LED indication is provided for card insertion, card communication and device status.

The application interface is based on the PC/SC interface standard. Leveraging the CCID standard, separate driver installation for normal PC environments (amongst others Microsoft Windows) is not needed.

Functions & features

  • Ergonomic design
  • Customizing options: colors and company logos
  • USB bus powered, no need for batteries or external power supply
  • Convenient installation leveraging CCID class drivers (no separate driver installation)
  • EMV 2000 Level 1 and PC/SC compliant
  • Compliant with all ISO 7816 smart cards
  • High performance communication speed
  • Support of all relevant (de-facto) standards
DIGIPASS 905



PRODUCT SPECIFICATIONS

Host Interface

  • USB 2.0 full speed (12Mbps)
  • Bus powered device
  • CCID compliant

Smart Card Interface

  • T=1, T=0 protocol support, extended ADigipassU support
  • Communication speed up to 320 kbps
  • Frequency up to 4 Mhz
  • Supports ISO 7816 Class A and AB smart cards

Smart Card Connector

  • 8 contacts - ISO location
  • 100,000 insertions
  • Gold plated, sliding contact

Human Interface

  • Two LEDs to indicate card insertion, card communication and device status

Operating Temperature

  • 0° to 50° Celsius, 85% RH non condensing
  • Storage temperature -20° to 60° Celsius, 85% RH non condensing

Cable/Power

  • Cable: 1.5 meter long with USB type A connector
  • Power through USB bus
  • Dimensions & weight reader (LWH): 69 x 58 x 13 mm, weight 68 grams
  • Stand (LWH) 80 x 72 x 55 mm, weight 243 grams

Operating System

  • Windows 2000, XP, Vista, Windows 7 and Windows 8, Server 2003/2008; MAC OS X 10.4 to 10. 8; Linux

API

  • PC/SC 1.0

Certifications and compliances

  • USB compliant
  • Microsoft WHQL 2000, XP, Server 2003 compliant
  • EMV 2000 Level 1 compliant
  • ISO 7816 compliant
  • CE and FCC Class B part 15 certified
  • CULus compliant

Vibration

  • 10 to 75 Hz; 10 m/s2

IEC 60068-2-6

Drop

  • 1 meter

IEC 60068-2-31

Emission



EN 55022

Immunity

  • 4 kV contact discharges
  • 8 kV air discharges
  • 3 V/m from 80 to 1000 MHz

EN 61000-4-2 and

EN 61000-4-3

Safety and environmental Compliance to European directives (CE marking)

2004/108/EC (EMC directives)

2002/95/EC (RoHS directive)

2002/96/EC (WEEE directive)
