Digipass 810 Datasheet

Digipass 810 is OneSpan’s most popular EMV-CAP compliant smart card reader

2 minute read

HIGHLIGHTS

Digipass 810 provides a flexible, secure way to authenticate your users. Smart cards also provide an extra layer of security, because users must know a password or PIN and must have the actual card to gain access to your online services.

Easy to Use

Cardholders simply insert their standard EMV chip card into Digipass 810 , and type their PIN for two-factor authentication (something they know, something they have). Each time a user enters his PIN, a one-time password (OTP) is generated and displayed.

The user can type this secure password to become authenticated over the bank’s network. This dynamic password cannot be used more than once and can only be verified by the issuing bank. The verification of the OTP or e-signature demonstrates cardholder’s identity and allows access to the network from any terminal, on any platform.

Digipass 810 can be used in conjunction with OneSpan Authentication Server Framework. For electronic payments, Digipass 810 can also be integrated into the 3D-Secure architecture, allowing the cardholder to sign specific account data to complete the transaction. The reader does not require a connection to the terminal or PC, nor any client software or drivers.

Cost-effective roll-out

Digipass 810 is a universal smart card reader that is ideal for mass deployments. The card reader initializes itself and becomes unique the moment a user inserts their smart card and enters their PIN. All secrets are permanently erased when the card is removed. Digipass 810 is platform-independent and does not require personalization prior to customer delivery; each reader is identical. Therefore production and distribution are efficient and very cost-effective.

Low cost of ownership

The Digipass 810 ombines the intrinsic security of the smart card with the flexibility of a token. No extra personalization is required by the network owner and can be delivered very efficiently in high volume. Security infrastructure costs are reduced since there are fewer helpdesk calls. DIGIPASS 810 allows banks to transition cost effectively to strong authentication for retail banking by leveraging their existing investment in EMV infrastructure.

DIGIPASS 810



FEATURES

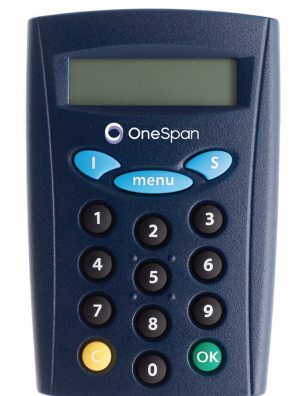

DIGIPASS 810 reader

Stand-alone PIN pad reader

Display

High contrast 80x16 dot matrix LCD

Size

Compact 96 x 62 x 11 mm

Weight

50 g

Keypad

Tactile keypad with silicon rubber key printed with an epoxy layer.

Resistant to over 100,000 rubbings. 10 numeric keys, 5 function keys

Lifetime

5-year lifetime

Standards

Mastercard CAP (2004, 2007)

Mastercard CAP E (2008)

VISA dynamic passcode authentication version 1.1

German Sm@rt TAN

Belgian eID Card

Banksys Unconnected reader specification (BKS M.010 version 1.3)

Logo

Bank’s logo can be printed on the reader. Color of the casing can also be customized

TECHNICAL SPECIFICATIONS

Short storage temperature

-10 °C to 50 °C;

90 %RH non condensing

IEC 60068-2-78 (Damp heat)

IEC 60068-2-1 (Cold)

Operating temperature

0 °C to 45 °C;

85 %RH non condensing

IEC 60068-2-78 (Damp heat)

IEC 60068-2-1 (Cold)

Vibration

10 to 75 Hz; 10 m/s2

IEC 60068-2-6

Drop

1 meter

IEC 60068-2-31

Emission



EN 55022

Immunity

4 kV contact discharges

8 kV air discharges

3 V/m from 80 to 1000 MHz

EN 61000-4-2

EN 61000-4-3

Compliance to European directives (CE marking)



2004/108/EC (EMC directives)

2002/95/EC (RoHS directive)

2002/96/EC (WEEE directive)

Tampering

Tamper evidence

ISO 13491-1
